B777-F
Aircraft Information
Cargo Door Dimension
[cm(inch)]
| Compartment | Door Dimension Width x Height |
|---|---|
| FWD | 121 x 88 (48 x 35) |
| AFT | 121 x 88 (48 x 35) |
Weight Limitation
| Compartment | Maximum Weight of Loading | Floor Limitation | |
|---|---|---|---|
| FWD | 700 | 2,007kg (4,424lbs) | 732kg/m² (150lbs/ft²) |
| 700ER | 552kg (1,218lbs) | 732kg/m² (150lbs/ft²) | |
| AFT | 700 | 2,989kg (6,590lbs) | 732kg/m² (150lbs/ft²) |
| 700ER | 401kg (884lbs) | 732kg/m² (150lbs/ft²) | |

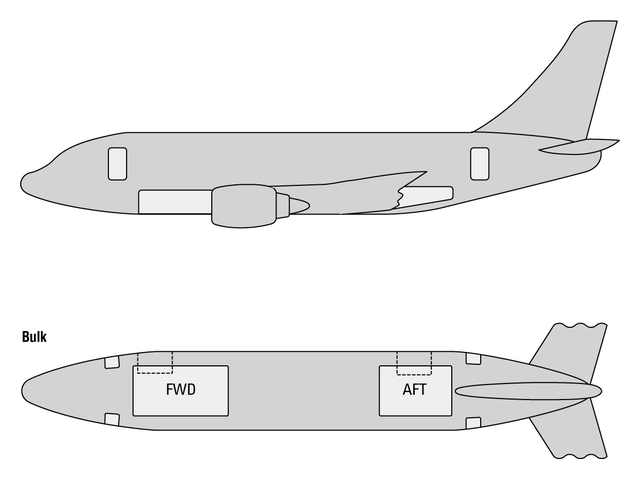

BULK
Bulk Dimension
[cm(inch)]
Package Size Table（FWD）
[cm(inch)]
| Width | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 (5) |
25 (10) |
38 (15) |
50 (20) |
63 (25) |
76 (30) |
89 (35) |
101 (40) |
114 (45) |
122 (48) |
||
| Length | |||||||||||
| Height | 86 (34) |
338 (133) |
292 (115) |
257 (101) |
226 (89) |
201 (79) |
180 (71) |
160 (63) |
147 (58) |
137 (54) |
135 (53) |
| 81 (32) |
378 (149) |
335 (132) |
292 (115) |
259 (102) |
231 (91) |
206 (81) |
185 (73) |
170 (67) |
160 (63) |
157 (62) |
|
| 76 (30) |
389 (153) |
378 (149) |
330 (130) |
290 (114) |
257 (101) |
229 (90) |
208 (82) |
191 (75) |
180 (71) |
175 (69) |
|
| 71 (28) |
396 (156) |
389 (153) |
381 (150) |
328 (129) |
290 (114) |
257 (101) |
231 (91) |
211 (83) |
196 (77) |
193 (76) |
|
| 66 (26) |
401 (158) |
394 (155) |
386 (152) |
351 (138) |
307 (121) |
274 (108) |
246 (97) |
226 (89) |
211 (83) |
206 (81) |
|
| 60 (24) |
409 (161) |
401 (158) |
394 (155) |
386 (152) |
335 (132) |
297 (117) |
267 (105) |
244 (96) |
226 (89) |
221 (87) |
|
| 55 (22) |
417 (164) |
409 (161) |
401 (158) |
394 (155) |
356 (140) |
315 (124) |
282 (111) |
257 (101) |
236 (93) |
231 (91) |
|
| 50 (20) |
422 (166) |
414 (163) |
406 (160) |
401 (158) |
384 (151) |
338 (133) |
302 (119) |
272 (107) |
251 (99) |
241 (95) |
|
| 45 (18) |
430 (169) |
422 (166) |
414 (163) |
406 (160) |
399 (157) |
356 (140) |
315 (124) |
284 (112) |
262 (103) |
251 (99) |
|
| 40 (16) |
437 (172) |
432 (170) |
417 (164) |
409 (161) |
401 (158) |
368 (145) |
325 (128) |
292 (115) |
267 (105) |
257 (101) |
|
| 35 (14) |
439 (173) |
432 (170) |
424 (167) |
417 (164) |
411 (162) |
391 (154) |
345 (136) |
310 (122) |
279 (110) |
269 (106) |
|
| 30 (12) |
442 (174) |
434 (171) |
430 (169) |
422 (166) |
414 (163) |
401 (158) |
358 (141) |
320 (126) |
292 (115) |
277 (109) |
|
| 25 (10) |
447 (176) |
439 (173) |
434 (171) |
427 (168) |
419 (165) |
414 (163) |
371 (146) |
330 (130) |
307 (121) |
284 (112) |
|
| 12 (5) |
455 (179) |
447 (176) |
439 (173) |
434 (171) |
427 (168) |
422 (166) |
414 (163) |
363 (143) |
318 (125) |
302 (119) |
|
